Mitsubishi Electric & Daikin Ductless Systems

What is Duct Free?

For decades, split-zoning air-conditioning and heat pump systems have been the quiet solution for cooling and heating problems around the world. Our quiet and powerful systems have three main components: an indoor unit, outdoor unit, and remote controller. Installation is as simple as mounting the indoor and outdoor units, connecting the refrigerant lines, and making a few electrical connections.

Why Mitsubishi Electric Systems?

Our commitment to empower homeowners to create their own customized comfort is fueled by continual innovation and refinement. Here are some of the technologies that help cool and heat your home more efficiently and effectively:



Hot-start

The indoor unit’s fan only blows air when the coil has warmed to the desired temperature. An energy-saving measure, it also prevents drafts of cold air at start-up.

i-see Sensor™

This sensor scans the room and adjusts temperature and airflow automatically. Maintain consistent comfort by eliminating cold and hot spots.

H2i® Technology

Hyper-Heating INVERTER (H2i) technology is designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.

Zone Control

Why cool or heat rooms you don’t use? Why sweat or shiver in those you do? Zone control allows you to optimize the temperature of any space with an indoor unit to save energy and reduce costs. Create your own perfect comfort zones!

Quiet Operation

Indoor units run quiet as a whisper and outdoor units run quieter than a refrigerator. You have to hear it (or not) to believe it!

Enhanced Filtration Systems

Washable filters last up to 10 years and remove pollen, dust, dander and other allergens that reduce indoor air quality. Each room has its own filter to ensure pristine air.

Where Can Mitsubishi Electric Products Be Used?

If a room is too hot or too cold, Mitsubishi Electric Cooling & Heating can handle it! Mitsubishi split-zoning systems are specifically designed to improve the comfort level in an uncomfortably hot or cold room of an existing building. Because they don't require ductwork, they're the perfect heating and cooling systems for renovating older buildings that were constructed before air conditioning was available - even those with plaster walls and brick facades. The versatility and variety of applications for Mitsubishi Electric systems are virtually unlimited. They're an excellent choice for almost any spot cooling or heating situation, including enclosed sunrooms, upstairs bedrooms, classrooms, hospitals, nursing homes, restaurants, hotels, workout rooms, computer rooms, offices and churches.

They're also equipped with an anti-allergen filter and prevent the cross-flow of air with contaminants. And because they can be controlled by zone, it's easy to set the controls for the exact room temperature you want.

How does it work? Mitsubishi Electric Cooling & Heating can fit into almost any space because their innovative engineering optimizes the capabilities of the INVERTER technology and R410A refrigerant for more efficient systems with smaller indoor and outdoor units. R410A refrigerant is environmentally friendly, with zero Ozone Depletion Potential (ODP). The units themselves are also made of recyclable materials.

Control at Your Fingertips, Anytime, Anywhere!

Kumo Cloud Mobile app system control

Mitsubishi High Wall Indoor Ductless Heat Pump Products

MSZ-FH

Wall Mount Deluxe Heat Pump MSZ-FH

View Brochure
Model Family: MSZ-FH
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 30.5 SEER
Efficiency EER: Up to 15.5 EER
Efficiency HSPF: Up to 13.5 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-FH
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 4
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model is equipped with the i-see Sensor™ and responds to troublesome regions closer to the ceiling and the floor.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
  • This model uses Hyper-Heating INVERTER™ technology to offer exceptional performance down to -13? F outdoor ambient.
MSZ-FE

Wall Mount Deluxe Heat Pump MSZ-FE

View Brochure
Model Family: MSZ-FE
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 26 SEER
Efficiency EER: Up to 15.5 EER
Efficiency HSPF: Up to 10.5 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-FE
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 5 Fan Speeds
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model is equipped with the i-see Sensor™ and responds to troublesome regions closer to the ceiling and the floor.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
  • Models equipped with a wireless remote control are compatible with optional RedLink™.
  • This model uses Hyper-Heating INVERTER™ technology to offer exceptional performance down to -13? F outdoor ambient.
MSZ-GE

Wall Mount Heat Pump MSZ-GE

View Brochure
Model Family: MSZ-GE
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 21 SEER
Efficiency EER: Up to 13.6 EER
Efficiency HSPF: Up to 10 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-GE
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 4
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model is equipped with the i-see Sensor™ and responds to troublesome regions closer to the ceiling and the floor.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
  • This model uses Hyper-Heating INVERTER™ technology to offer exceptional performance down to -13? F outdoor ambient.
MSZ-D

Wall Mount Heat Pump MSZ-D

View Brochure
Model Family: MSZ-D
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 14.5 SEER
Efficiency EER: Up to 8 EER
Efficiency HSPF: Up to 8.2 HSPF
Matching Outdoor Unit: Single-Zone: MUZ-D
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
  • Models equipped with a wireless remote control are compatible with optional RedLink™.

Mitsubishi High Wall Indoor Ductless Cool-Only Products

MSY-GE

Wall Mount Air Conditioner MSY-GE

View Brochure
Model Family: MSY-GE
Purpose: Cool only
Zone Capability: Single Zone
Efficiency SEER: Up to 21 SEER
Efficiency EER: Up to 13.6 EER
Matching Outdoor Unit: Single-Zone: MUY-GE
Matching Outdoor Unit: Multi-Zone: NA
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
MSY-D

Wall Mount Air Conditioner MSY-D

View Brochure
Model Family: MSY-D
Purpose: Cool only
Zone Capability: Single Zone
Efficiency SEER: Up to 15.1 SEER
Efficiency EER: Up to 8.2 EER
Matching Outdoor Unit: Single-Zone: MUY-D
Matching Outdoor Unit: Multi-Zone: NA
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.

Mitsubishi Alternate Indoor Ductless Products

SEZ-KD

Horizontal Ducted Heat Pump SEZ-KD

View Brochure
Model Family: SEZ-KD
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 17.5 SEER
Efficiency EER: Up to 12.5 EER
Efficiency HSPF: Up to 10 HSPF
Matching Outdoor Unit: Single-Zone: SUZ-KA
Matching Outdoor Unit: Multi-Zone: MXZ-B
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: Whisper Quiet
Wireless Remote: No
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • Models equipped with a wireless remote control are compatible with optional RedLink™.
  • This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
SLZ-KA

Ceiling Recessed Heat Pump SLZ-KA

View Brochure
Model Family: SLZ-KA
Purpose: Heat/Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER: Up to 16 SEER
Efficiency EER: Up to 10.2 EER
Efficiency HSPF: Up to 9.6 HSPF
Matching Outdoor Unit: Single-Zone: SUZ-KA
Matching Outdoor Unit: Multi-Zone: MXZ-B
Energy Star Rated: Yes
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: Whisper Quiet
Wireless Remote: No
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
  • This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
  • Models equipped with a wireless remote control are compatible with optional RedLink™.
  • This model uses Hyper-Heating INVERTER™ technology to offer exceptional performance down to -13? F outdoor ambient.
MFZ-KA

Floor-Mount Heat Pump MFZ-KA

View Brochure
Model Family: MFZ-KA
Purpose: Heat/Cool
Zone Capability: Multi-Zone
Efficiency SEER: NA
Efficiency EER: NA
Efficiency HSPF: NA
Matching Outdoor Unit: Single-Zone: NA
Matching Outdoor Unit: Multi-Zone: MXZ-C
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4
Sound Level: Whisper Quiet
Wireless Remote: Yes
Factory Warranty Parts: 12 years on parts and 12 years on the compressor when installed and registered by a Mitsubishi Electric Diamond Contractor
Manufacturer's Stated Benefits:
  • Standard Filtration
  • Wireless Operation

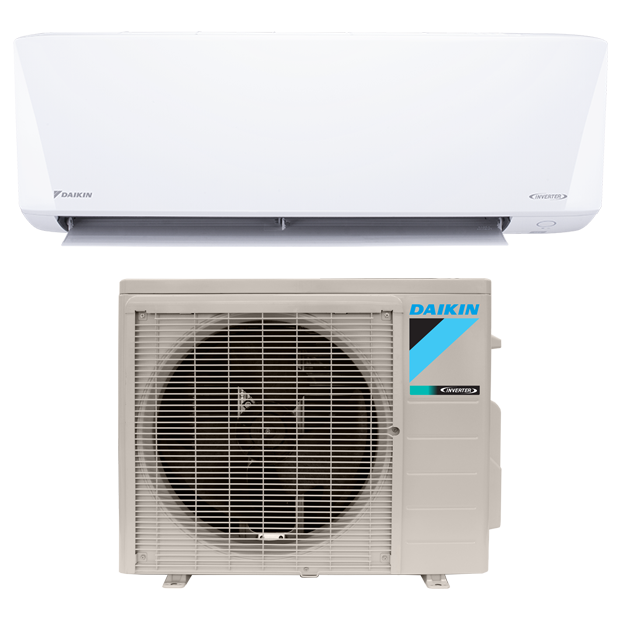

Daikin Ductless High Wall Indoor Air Conditioners

LV Series - FTK

Ductless System LV Series Wall-Mount Air Conditioner

View Brochure
Model Family: LV Series - FTK
Purpose: Cooling
Zone Capability: Single zone
Efficiency SEER: Up to 24.5
Efficiency EER: Up to 15.3 EER
Matching Outdoor Unit: Single-Zone: FTXS09LVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 5 Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Program Dry Function
  • Powerful Operation
  • Intelligent Eye* Occupancy Sensor
19 Series - FTK

Ductless System 19 Series Wall-Mount Air Conditioner

View Brochure
Model Family: 19 Series - FTK
Purpose: Cooling
Zone Capability: Single zone
Efficiency SEER: Up to 19 SEER
Efficiency EER: 12.5 EER
Matching Outdoor Unit: Single-Zone: RK09NMVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 5 Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Program Dry Function
  • Econo Mode
  • Powerful Operation Mode
  • Auto Fan Speed Contro
  • Auto Restart after power failure
  • Self-Diagnostics with digital display
15 Series - FTK

Ductless System 15 Series Wall-Mount Air Conditioner

View Brochure
Model Family: 15 Series - FTK
Purpose: Cool only
Zone Capability: Single zone
Efficiency SEER: Up to 15 SEER
Efficiency EER: Up to 12.2 EER
Matching Outdoor Unit: Single-Zone: RKN09NMVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: N/A
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 5-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Cooling Range: 50? - 115? F
  • Washable Air Filter
  • Econo Mode
  • Program Dry Function
  • Powerful Operation Mode
  • Auto Fan Speed Contro

Daikin Ductless High Wall Indoor Heat Pumps

FTXG09HVJU

Quaternity Ductless System

View Brochure
Model Family: FTXG09HVJU
Purpose: Heat and Cool
Zone Capability: Single- zone
Efficiency SEER: Up to SEER 26.1
Efficiency EER: 15.8 EER
Efficiency HSPF: 11 HSPF
Matching Outdoor Unit: Single-Zone:
Matching Outdoor Unit: Multi-Zone: RXG09HVJU
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds:
Sound Level: As Low as 26 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 12-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Inverter Compressor
  • Flash Streamer Technology
  • Advanced dehumidification
  • 3-D Airflow
  • Comfortable Mode
  • Auto Changeover
  • Auto Fan Speed Contro
  • Self-Diagnostics with Digital Display
  • Auto Restart after Power Failure
  • Anti-Corrosion Treatment on Heat Exchanger
LV Series - FTX

Ductless System LV Series Wall-Mount Heat Pump

View Brochure
Model Family: LV Series - FTX
Purpose: Heating and Cooling
Zone Capability: Single zone
Efficiency SEER: Up to 24.5 SEER
Efficiency EER: Up to 15.3 EER
Efficiency HSPF: Up to 12.5 HSPF
Matching Outdoor Unit: Single-Zone: RXS_LVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: N/A
Factory Warranty Parts: 5-Year Parts Warranty
Manufacturer's Stated Benefits:
  • Econo Mode function reduces operating current and power consumption by approximately 30% during start-up - See more at: http://d
  • Desired temperature quickly achieved with rapid cooling or heating via powerful operation - See more at: http://daikincomfort.co
  • Precision temperature control for individual rooms
19 Series - FTX

Ductless System 19 Series Wall-Mount Heat Pump

View Brochure
Model Family: 19 Series - FTX
Purpose: Heating and Cooling
Zone Capability: Singe zone
Efficiency SEER: Up to 18.0 SEER
Efficiency EER: Up to 12 EER
Efficiency HSPF: Up to 8.5 HSPF
Matching Outdoor Unit: Single-Zone: RX09NMVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: N/A
Factory Warranty Parts: 5- Year Limited Parts Warranty
Manufacturer's Stated Benefits:
  • Econo Mode function reduces operating current and power consumption by approximately 30% during startup
  • Effective heating and cooling throughout the room via wide-angle louvers and vertical auto-swing function
  • Precision temperature control for individual rooms
  • Econo-mode decreases power consumption when other appliances need more power
  • Titanium Apatitie air-purifying filter
  • Refrigerant leakage detection
  • Wide-angle louvers
  • Vertical auto-swing
  • Automatic operation with auto-restart
  • Auto-fan speed
  • Wipe-clean flat pane
  • Comfort mode
  • Self-diagnosis with digital display
  • Anti-corrosion treatment
15 Series - FTX

Ductless System 15 Series Wall-Mount Heat Pump

View Brochure
Model Family: 15 Series - FTX
Purpose: Heating and Cooling
Zone Capability: Single zone
Efficiency SEER: Up to 18.0 SEER
Efficiency EER: Up to 12 EER
Efficiency HSPF: Up to 8.5 HSPF
Matching Outdoor Unit: Single-Zone: RXN09NMVJU
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: N/A
Refrigerant Type: R-410A
Number of Fan Speeds: N/A
Sound Level: Quiet operation
Wireless Remote: N/A
Factory Warranty Parts: 5- Year limited parts warranty
Manufacturer's Stated Benefits:
  • Econo-mode decreases power consumption when other appliances need more powe
  • Titanium Apatitie air-purifying filter
  • Refrigerant leakage detection
  • Wide-angle louvers
  • Vertical auto-swing
  • Automatic operation with auto-restart
  • Auto-fan speed
  • Wipe-clean flat panel
  • Comfort mode
  • Self-diagnosis with digital display
  • Anti-corrosion treatment

Daikin Alternate Indoor Ductless Products

FXZQ_MVJU9

4-Way Ceiling Mounted Cassette

Model Family: FXZQ_MVJU9
Purpose: Heat and Cool
Zone Capability: Multi-Zone
Efficiency SEER: Up to 19.3 SEER
Efficiency EER:
Efficiency HSPF:
Matching Outdoor Unit: Single-Zone:
Matching Outdoor Unit: Multi-Zone: RZR_PVJU
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds:
Sound Level: As low as 29 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10 Year Limited Parts Warranty
Manufacturer's Stated Benefits:
  • Capacity range from 0.6 to 1.5 Tons
  • Fits in a standard 2' x 2' ceiling grid
  • Simple installation
  • Space-saving depth of units requires only 11.6
  • Three auto-swing positions to choose from - standard, draft prevention and ceiling stain prevention
  • Simple installation with an easy-to-fitdecoration panel, easy height adjustment and a suction grille that can rotate up to 90?
  • Easy-to-clean grille, washable long-life filter and optional high efficiency filters
  • Condensate pump inside the unit
FDXS09LVJU

Multi-Zone Duct System

View Brochure
Model Family: FDXS09LVJU
Purpose: Heat and Cool
Zone Capability: Multi-Zone
Efficiency SEER: Up to 18.9 SEER
Efficiency EER: 12.5 EER
Efficiency HSPF: 12.5 HSPF
Matching Outdoor Unit: Single-Zone:
Matching Outdoor Unit: Multi-Zone: 2MXS18NMVJU, 3MXS24NMVJU, 4MXS36NMVJU, RMXS48LVJU
Energy Star Rated: Energy Star Rated
Refrigerant Type: R-410A
Number of Fan Speeds:
Sound Level: Quiet operation
Wireless Remote: Yes
Factory Warranty Parts: 12 Year Limited Warranty
Manufacturer's Stated Benefits:
  • Space-saving design and precision temperature control for individual rooms
  • World-renowned Daikin Inverter
